Galvanized or Stainless HVAC Ductwork? Make the Right Choice | Duct2Go
Choosing between galvanized and stainless steel duct affects performance, durability, and cost. Use this guide to match the material to your environment and budget with confidence.
Both galvanized and stainless steel deliver proven results in HVAC systems. Each has distinct strengths, costs, and care needs. Below you will find a clear comparison, practical pros and cons, and selection criteria you can use on your next submittal or takeoff.
Which Is Better: Galvanized or Stainless Steel Ductwork?
Neither is better in every case. Galvanized steel ductwork is the right choice for most indoor HVAC systems because it costs less and performs well in moderate humidity. Stainless steel is worth the premium in corrosive, sanitary, or coastal environments, where it resists corrosion and cleans easily. Match the metal to the exposure, not the price tag.
Quick Comparison
| Attribute | Galvanized Steel Duct | Stainless Steel Duct |
|---|---|---|
| Corrosion resistance | Zinc coating protects in moderate humidity and typical commercial conditions | Excellent resistance in high humidity, chemical, and coastal environments |
| Cost | Lower upfront cost and strong value | Higher upfront cost that can pay off with longer service life |
| Strength and durability | Good structural integrity for supply, return, and exhaust | Very durable for aggressive or sanitary applications |
| Weight and handling | Heavier than aluminum and lighter than most stainless options | Heavier, may need stronger supports and careful rigging |
| Hygiene and cleanability | Good for general use | Smooth, easy to clean, preferred for food and healthcare |
| Typical uses | General industrial HVAC, warehouses, manufacturing floors | Chemical plants, food processing, pharma, coastal and high humidity spaces |
Galvanized Duct
What Is Galvanized Steel Ductwork? (Also Called Galvanised, GI or Galv Duct)
Galvanized steel ductwork is carbon steel sheet coated with zinc to prevent rust. You may also see it written galvanised, GI (galvanized iron) or galv duct. The zinc layer sacrifices itself first, protecting the steel underneath. It is the most common HVAC duct material for supply, return, and exhaust air in typical commercial and residential buildings.
Pros
- Corrosion resistance: Zinc coating protects against rust in moderate humidity and normal temperature swings.
- Cost effective: Lower initial cost compared to stainless steel.
- Strength and durability: Solid structural performance for residential and commercial work.
Cons
- Harsh environments: In coastal or chemical rich conditions the coating can wear down and expose base steel.
- Weight: Heavier than aluminum which can add handling effort in tight spaces.
- Appearance: Less sleek than stainless for exposed architectural runs.
Galvanized Duct Coating Grades and Gauges
Zinc coating weight matters as much as the metal itself. Galvanized sheet is commonly specified as G60 or G90, with G90 carrying a heavier zinc layer for humid or exposed runs. Sheet thickness is chosen separately by duct size and static pressure class under SMACNA standards. Our HVAC duct gauge selection guide walks through the process.
Joining and Sealing
Use flanged or spiral lock seams. Seal with mastic or UL approved foil backed tape. For higher pressure runs use gasketed flanges.
Maintenance Note
Inspect for surface rust in corrosive areas and touch up or replace sections as needed.
Where Galvanized HVAC Duct Is Used

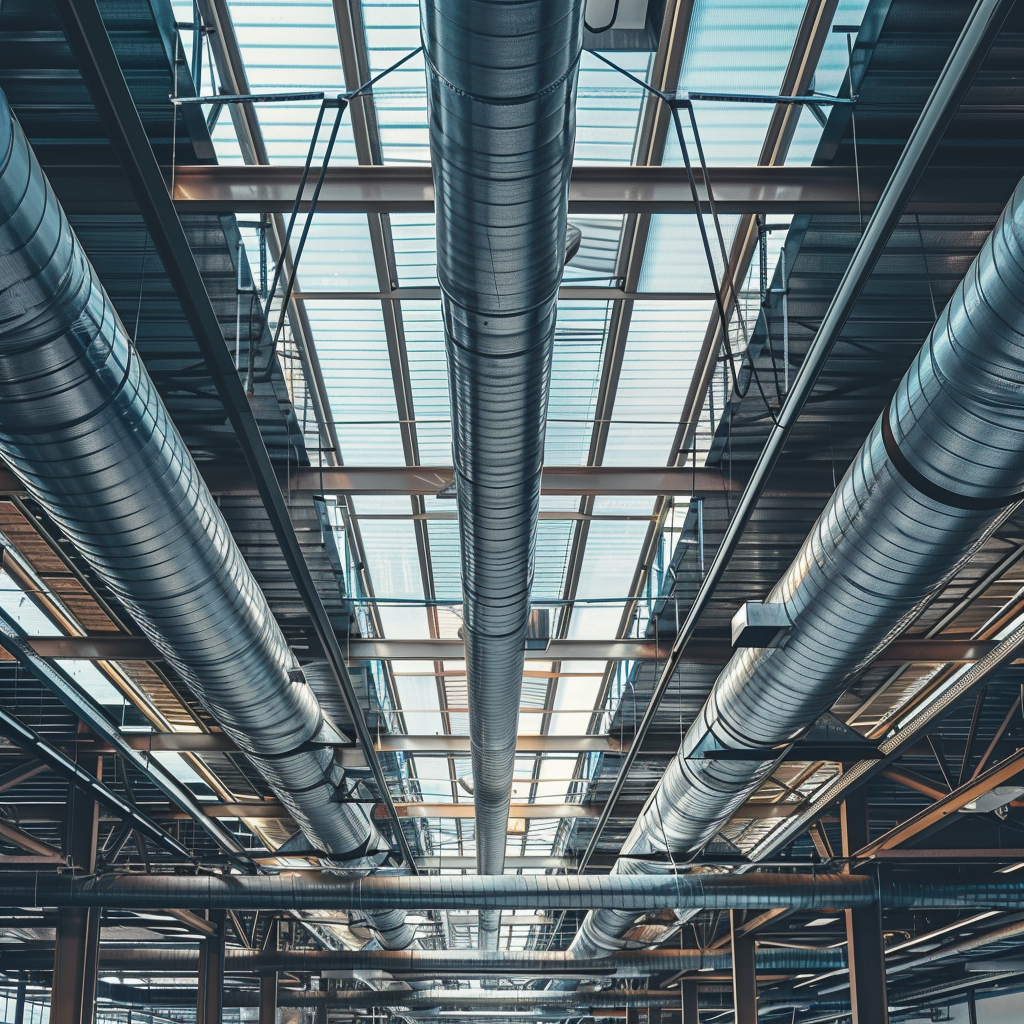

Galvanized steel duct handles most air distribution work: supply and return trunks, rooftop unit connections, ventilation and exhaust runs, warehouses, schools, offices, and light industrial spaces. Round and spiral galvanized duct suits exposed mains, while galvanized rectangular duct fits tight ceiling cavities. Avoid it for grease exhaust, sustained high heat, or chemical fumes.
Stainless Steel Duct
What is Stainless Steel Duct
Stainless steel is a steel alloy with chromium that forms a passive layer for corrosion resistance. It is the preferred choice where longevity, sanitation, and harsh exposure are critical.
Pros
- Superior corrosion resistance: Performs in high humidity, chemical, or salt exposure.
- Service life: Long lifespan with minimal surface treatment.
- Hygienic and cleanable: Smooth surface supports food and healthcare standards.
Cons
- Higher cost: More expensive up front but can save money over the full lifecycle.
- Weight: Heavier than galvanized and aluminum which may require stronger supports.
- Over spec risk: In mild environments it may not deliver a cost benefit over galvanized.
Stainless Steel Grades for HVAC: 304 vs 316
Most stainless HVAC duct is Type 304 or 316. Type 304 suits kitchens, food plants, and general sanitary work. Type 316 adds molybdenum for better resistance to chlorides, which makes it the safer pick for coastal buildings, pool areas, and chemical exposure. Confirm the grade with the engineer of record before ordering.
Where Stainless Steel for HVAC Systems Makes Sense
Stainless steel duct systems are specified where air quality, washdown, or corrosion rule out galvanized: food and beverage plants, pharmaceutical and lab spaces, hospitals, commercial kitchens, natatoriums, and coastal facilities. Smooth interior walls resist buildup, and welded seams can be made liquid-tight where codes or process conditions require it. Duct2Go fabricates these systems to order.
Joining and Sealing
Use welded or flanged connections. Sanitary clamps are common. Food grade systems often use silicone gaskets.
Maintenance Note
Check for pitting in chloride rich atmospheres. Otherwise requires limited maintenance.
Welded vs. Flanged Duct Fabrication
Galvanized duct is usually joined with spiral lock seams, slip joints, or flanges. Stainless duct is often continuously welded for liquid-tight, cleanable seams. Welded galvanized duct is possible but needs zinc restoration care at the weld. Duct2Go fabricates both to your drawings through custom fabrication, including fittings, transitions, and access doors.
How to Choose for Your Next Project
- Environment: High humidity, chemicals, or salt exposure favor stainless. Neutral indoor conditions make galvanized a strong choice.
- Budget: If cost is the primary driver and exposure is mild, galvanized keeps spend down. For long service life with limited maintenance, stainless can win on lifecycle cost.
- Application: Food, pharma, clean rooms, and coastal sites benefit from stainless. Residential and standard commercial often use galvanized with great results.
- Logistics: Consider weight, lift access, hanger capacity, and shop skill for welding or sanitary work.
- Codes and standards: Follow local code and SMACNA practices. Include NFPA requirements where fire rated assemblies apply.
Corrosion Resistant Ductwork: What Actually Fails
Galvanized duct corrodes when the zinc coating is scratched, wet for long periods, or exposed to chlorides and fumes. Stainless forms a passive chromium oxide layer that self-repairs, though chlorides can still cause pitting in the wrong grade. For corrosion resistant ductwork, match the metal to the humidity, chemicals, and salt level on site.
Other Duct Metals: Aluminum, Carbon Steel and Mild Steel
Aluminum duct is lighter and resists moisture but dents easily and costs more than galvanized. Carbon steel, also called mild steel or black iron, is welded for high-temperature and grease exhaust ducts and must be painted or coated to prevent rust. See our full galvanized vs aluminum vs stainless steel guide for a three-way comparison.
Total Cost View
| Option | Upfront Cost | Maintenance | Typical Lifespan | Best Fit |
|---|---|---|---|---|
| Galvanized | Lower | Periodic inspection and touch up in corrosive pockets | Long in mild environments | General industrial HVAC and standard commercial projects |
| Stainless | Higher | Low, check for pitting in chloride areas | Very long in aggressive or sanitary environments | Food and healthcare, chemical plants, coastal and high humidity sites |
Value tip: If corrosion or sanitation would force frequent replacement, invest in stainless or proper coatings early. Lifecycle cost often ends up lower.
What Drives Ductwork Cost
Material is only part of the price. Cost also depends on sheet gauge, duct size, fitting count, welding labor, finish, and freight. Stainless costs more in both material and labor, but longer service life in corrosive spaces can offset that. For accurate numbers, follow our guide to measuring for custom ductwork and request a quote.
Frequently Asked Questions
Is ductwork made of galvanized steel?
Most HVAC ductwork is galvanized steel because it balances cost, strength, and rust resistance. Aluminum, stainless steel, fiberglass duct board, and flexible duct are also used, depending on the application, environment, and code.
Are air ducts made of zinc?
Not solid zinc. Galvanized air ducts are steel sheet with a thin zinc coating for rust protection. The steel provides the strength, and the zinc provides the corrosion barrier.
What is the difference between galvanized and galvanised duct?
Nothing. "Galvanised" is the British and Commonwealth spelling. Some regions call it GI (galvanized iron) duct, but it is the same zinc-coated steel.
Is stainless steel duct worth the extra cost?
It is worth it when corrosion, hygiene, or replacement downtime would be costly. In dry, conditioned indoor spaces, galvanized usually delivers the same airflow performance for far less, so stainless can be over-specifying.
How long does galvanized ductwork last?
In dry, conditioned buildings it can last for decades. Life is shorter in persistent moisture, coastal air, or chemical exposure, where the zinc wears through and the steel underneath starts to rust.
Can galvanized duct be used for kitchen grease exhaust?
Generally no. Commercial kitchen grease exhaust falls under NFPA 96, which calls for liquid-tight welded carbon steel or stainless steel. Confirm requirements with your local authority having jurisdiction.
Can you weld galvanized duct?
Yes, but welding burns off the zinc locally and produces fumes that need ventilation and respiratory protection. The weld should then be recoated with a zinc-rich product. Most galvanized duct uses spiral lock seams or flanges instead.
What gauge sheet metal is used for ductwork?
Gauge depends on duct size, pressure class, and construction standard. Larger or higher-pressure duct needs thicker metal. SMACNA tables set the minimums, and our HVAC duct gauge selection guide explains how to read them.
